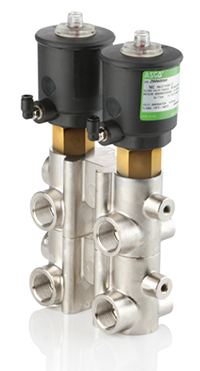

ASCO Two-Valve Module with 50mm Operators Series 290 Features

• A single unit consisting of two air operated valves for the temperature control of jacketed tanks/vessels designed as a feed or return flow module
• Certified for use in alcohol beverage process such as fermentation processes with no risk of contamination of products in contact with valve (French EXCELL Laboratory green label certification)
• Inlet/outlet orifice offered in G thread connections
• Pneumatic connection with incorporated 4 x 6 mm instant fitting
• The two-valve module can be mounted in any position without affecting operation
• Optical position indicator on valve operator
• Can be integrated with an intelligent valve manifold system (ASCO G3) for higher level of automation and control over the temperature control process

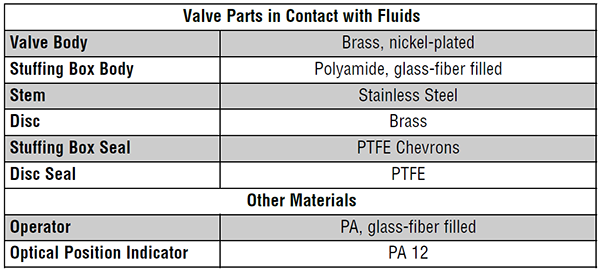

ASCO Two-Valve Module with 50mm Operators Series 290 Construction

ASCO Two-Valve Module with 50mm Operators Series 290 General Specifications

Pressure differential: 0-145 psi (0-10 bar)
Maximum allowable pressure: 232 psi (16 bar)
Ambient temperature range: 14F to 140F (-10C to 60C)
Maximum viscosity: 2,780 SSU
Pilot fluid: Filtered air
Max. pilot pressure: 145 psi (10 bar)
Min. pilot pressure: See next page
Pilot fluid temperature: 14F to 140F (-10C to 60C)


ASCO Two-Valve Module with 50mm Operators Series 290 Installation

• The valves can be mounted in any position without affecting operation
• Pipe connection identifier is: G = G (ISO 228/1)
• Installation/maintenance instructions are included with each two-valve module

ASCO Two-Valve Module with 50mm Operators Series 290 Dimensions



Download ASCO Two-Valve Module with 50mm Operators Series 290 Datasheet

This temperature control valve can be completely automated using the Aventics G3 Fieldbus with 500 Series platform.
