Schunk RCG Series Magnetic Grippers for Battery Round Cells
Schunk released a new gripper specifically designed to pick up round cell batteries in the electric vehicle market. They are compact at only 46mm in diameter. The RCG is characterized by minimal interference contours and, depending on the application, is scalable and available in various designs. In combination with a cell spacing unit with Z-compensation, the cells can be picked up in a defined manner and set down again with newly determined cell spacing. The dynamic and heavy-duty SLD axis ensures short cycle times and high positioning accuracy. By using industry-relevant encoder interfaces, the axis can be integrated into the software environment of different controller manufacturers.
RCG-Series Magnetic Gripper Features:
- Mechanical/magnetic gripping
- Flexible number of cells
- Can include Z-compensation
- Short project lead time
- Gripping force maintenance
- Workpiece recognition
- Piston stroke monitoring
- Gripping force = 60N
- Operating pressure min/max = 2/8 bar
Schunk Round Cell Gripper - RCG

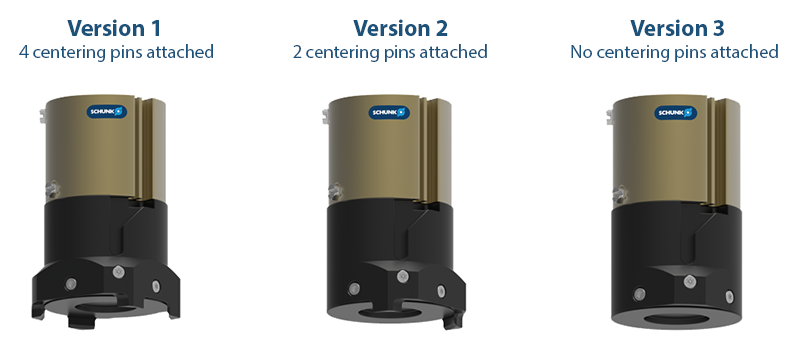

RCG-Series Magnetic Gripper Versions:
RCG Versions

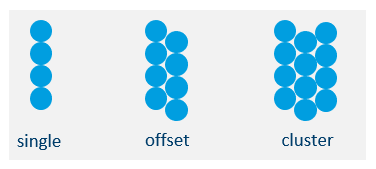

Maximizes Pack Density
Maximizes Pack Density
from battery cell to the battery pack
RCG-Series Magnetic Gripper Examples:

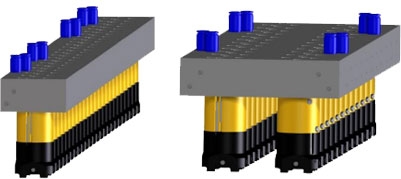

Schunk Multiple Gripping Units
Multiple Gripping Units
- Attachment of grippers on adapter plates
- Air supply via hose-free direct connection or screw connections
- Minimal hosing effort
- Number and size freely configurable

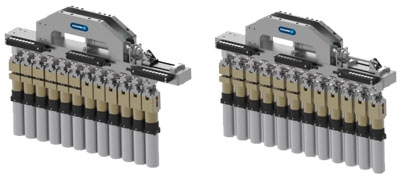

Schunk Spacing Units for RCG Gripper
Spacing Unit for RCG
- Spacing of round cells
- Different options:
- Pneumatic spacing
- Servo-electric spacing
