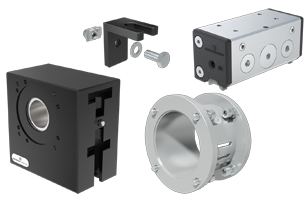

Linear Motion System Accessories from RobotUnitsEvery small detail has a big impact on the entire system, especially when countless accessories fill hundreds of catalog pages. Developing a new part for every new application in the industry or for production is fundamentally contrary to our idea of a compatible modular system. Therefore, our accessories for the linear system perform several functions at the same time in the Robotunits Modular Automation System.

Products

Linear Motion System Accessory Products

Timing Belt Pulley
Applications:
Drive and idler pulley for Linear Motion Unit, suitable for 50mm series extrusions.
 		Timing Belt Pulley
Timing Belt
Application:
Power transmission from the drive to the guide carriage.		Timing Belt
Timing Belt Clamp
Application:
For attaching and tensioning the timing belt.		Timing Belt Clamp
Single Idler
Application:
Easy-running linear motion units.
Wiper and lubrication unit are integrated on both sides.		Single Idler
Double Idler
Application:
Design of easy-running linear guides, wiper and lubrication unit integrated on both sides.		Double Idler
Eccentric Key
Application:
For adjusting and tightening the eccentric bolt of the Idlers		Eccentric Key
Guiderail
Application:
Guide rollers can be added later to any 50mm series extrusions.		Guiderail
Carriage Plate
Application:
Carriage plate for clamping attachments.
Assembly of guide carriages with double idlers.		carriage plate
Limit Stop
Application:
Stop buffer for carriage.		Limit Stop
Proximity Switch Bracket
Application:
For mounting a proximity switch; the idler serves as a switching surface.		proximity switch bracket
Proximity Switch
Application:
Inductive proximity switch for monitoring the travel limit.
Mounted with Proximity Switch Bracket LIN 8201.		proximity switch
Motor Flange
Application:
Motor flange for attaching the motor to the timing belt pulley.		motor flange
Coupling
Application:
Component for connecting the motor and the drive shaft.		coupling
Driveshaft / Encoder Shaft
Application:
Shaft for connecting motors or couplings.		Driveshaft / Encoder Shaft
Expanding Coupling
Application:
Element for connecting the motor or driveshaft to the timing belt pulley.		expanding coupling
Encoder
Application:
Sensor for measuring angles of rotation on the LIN timing belt pulley.		encoder

Connection Shaft With Couplings
Application:
Shaft for connecting two conveyors or two linear motion units.



connection shaft wih couplings

Q & A

Q&A Section with Expand/Collapse Icons

Linear Motion Systems Accessories Q & A

+ What kind of accessories are offered for the Linear Motion System?
The accessories include guide rails, idler assemblies (single and double), lubrication/wiper units, mounting plates, and other add-ons designed to extend and enhance the linear motion system.
+Are these accessories compatible with all Robotunits extrusions?
Yes — many accessories (for example guide rails) are designed to retrofit to existing 50 mm grid extrusions of the modular system, making them compatible with the Robotunits standard frame structure.
+ How do I choose between a single idler and a double idler accessory?
A single idler is suitable for standard linear guide configurations; a double idler provides smoother running and may be preferred for higher precision or heavier loads. Both integrate wiper and lubrication units on both sides.
+ Can I retrofit guide rails to an existing system?
Yes — the guide rail accessory (e.g., “Guiderail LIL 5000”) can be cut to length and added later to existing 50 mm grid extrusions, enabling upgrades without full system replacement.
+ What maintenance features are built into the accessories?

The accessories often incorporate integrated wiper and lubrication units on both sides to ease maintenance, protect against contaminants, and improve running performance.
