C.I Cobot Sander 6-axis Robotic Arm and Controller
C.I Cobot Sander 6-axis Robotic Arm and Controller
Cobot Intelligence's new stand-alone cabinet door sanding solution. For the first time be able to mimic human sanding with a collaborative robot. It is a turnkey solution with a 6-axis robotic arm and controller, with 0.1 mm accuracy, and process repeatability.
Cobot Sander Benefits:
- Small footprint
- Auto dust collection
- Auto door measurement
- Robust, simple, productive
- Great ROI eliminating 2-3 people sanding
Cobot Intelligence Complete Sanding Solution
Cobot Sander Features:
- Simple flexible programming interface allows for easy modifications to sanding parameters.
- No programming experience required.
- Consistent high-quality sanding.
- Dual workstations create constant production.
- Compatible with all varieties of cabinet doors.
- Integrated dust extraction system.
- Unlimited amount of customizable sanding patterns.
- Dynamic force compensating sander.
- Touch Screen Control (HMI).
- Vacuum hold-down worktable.
- No clamping required.
- Integrated measuring system.
- Plug and play.
Demo Frames, Panel, and Back + Wood Cobot Intel
Cobot Sander Specifications:
- Height of Worktable: 37 Inches
- Width: 64 Inches
- Depth: 64 Inches
- Number of Working Stations: 2
- Size of each Station: 24 X 48 Inches
- Power Requirements: 208V single phase with neutral
- Air Requirements: 80-90 PSI
Download CI Cobot Sander 6 Axis Robotic Arm and Controller Brochure

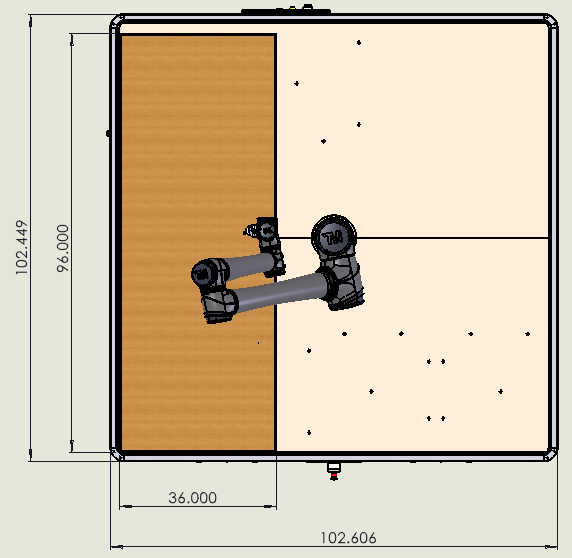

New larger table is now available for 3 x 8 panels.
Cobot Intel Sanding Solution Speed Up
2nd Big Doors Primer Operator Production
Larger Cobot System Table
Talk to one of our automation experts today at (855) 737-4716, or fill out our online form to learn more.
Cobot sander with a 6-axis robotic arm and controller, with 0.1 mm accuracy and process repeatability.
