The AVENTICS? Series 651, 652, 653 is an easy-to-install line of pneumatic filters, regulators, and lubricators (FRLs) that offer the industry's highest flow rates and widest temperature ratings. Available in 1/8-inch, and 1/4-inch port sizes, these FRLs are ideal for automotive and tire, packaging, food and beverage, and process applications requiring highly reliable operation and robust, modern-looking equipment.
AVENTICS? Series 651, 652, 653 Filters, Regulators, and Lubricators Features

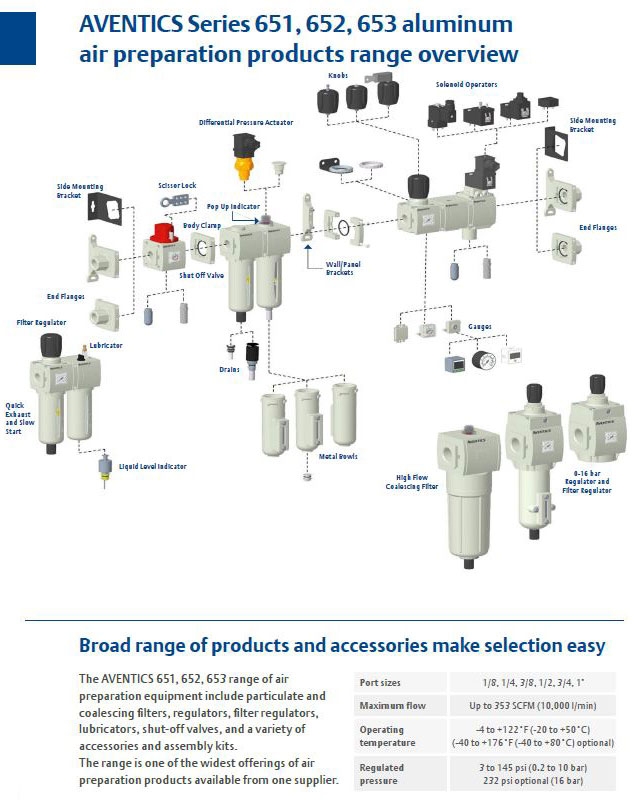

The AVENTICS? 651, 652, and 653 range of air preparation equipment include particulate and coalescing filters, regulators, filter regulators, lubricators, shut-off valves, and a variety of accessories and assembly kits. The range is one of the widest offerings of air preparation products available from one supplier.
- The industry's highest flow rates assure OEMs and maintenance managers that their air preparation products will optimize machine performance.
- Extended high- and low-temperature capabilities (-40° C to 80° C) allow the FRLs to be specified across a broad range of applications, including those within harsh environments.
- New manifold endplate flanges allow the maintenance technician to pull the manifold assembly out of service without disconnecting the piping.
- Front-facing easy-to-read, low-profile gauges improve serviceability. They are the only products of their type to offer these gauges on shut-off isolation valves and slow-start/quick-exhaust valves.
- Optional pressure regulator with reverse flow check permits placement of the regulator between the valve and cylinder - allowing air to be exhausted through the regulator without causing damage or reduced life.
- Optional integrated pressure range indicators allow the user to easily set the red/green color indicators to the desired pressure range.
Download AVENTICS? 650 Series Air Preparation System Datasheet
Talk to one of our automation experts today at (855) 737-4716, or fill out our online form to learn more.
The AVENTICS? Series 651, 652, 653 is an easy-to-install line of pneumatic filters, regulators, and lubricators (FRLs).
