400XR Series from Parker

Parker 400XR SeriesThe 400XR standard series linear positioners offer reliable performance and unmatched versatility. Convenient mounting features enable XY table combinations to be quickly and easily constructed. The XR family offers an unrivaled array of features and options that are easily matched to fit any application, from the very basic to the highly complex.

Premier performance, modular compatibility, and quick delivery have made these tables the perfect building blocks for cost-effective multi-axis systems.

The 400XR precision linear positioner family has achieved global recognition for consistent accuracy, reliable performance, high strength, and unmatched versatility. The XRs have excelled in industries such as life sciences, fiber optics, and instrumentation, where the highest degree of precision is required. And yet, because of the rugged construction, strength, and sealed design, these units have been used extensively for industrial automation applications such as packaging, automotive, and more.

Please note that the 412XR Series is discontinued.



SHOP 400XR SERIES

Features

400XR Series Features

  • 24/7 operation at 100% duty
  • Dowel holes for repeatable mounting
  • IP30-rated protective strip seals
  • Travels up to 2 meters
  • Optional single-point lube for easy maintenance
  • Full range of sizes from 90mm to 285mm wide
  • High-strength aluminum body
  • Square rail linear bearing
  • High-efficiency ball screw drive
  • Limit/Home Sensors

Specifications

400XR Series Specifications

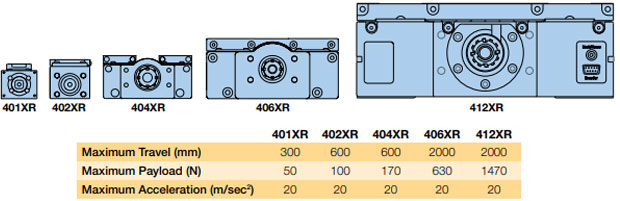

Parker 400XR Series Specifications



Please note that the 412XR size is discontinued.

Applications

400XR Series Applications and Industries

  • Life Sciences
  • Fiber Optics
  • Instrumentation
  • Industrial Automation
  • Packaging
  • Automotive

Q & A

Q&A Section with Expand/Collapse Icons

400 XR Series Q & A

+ What are the key specifications of the Parker 400XR Series, and will it work for my application?
The Parker 400XR Series offers travel lengths up to 2 meters and supports continuous 24/7 duty cycles. Load capacities vary by model, with the larger 412XR capable of handling very heavy payloads. Its modular sizing makes it suitable for a wide range of automation applications, from light-duty lab systems to heavy-duty industrial machinery.

+ How precise and reliable is the 400XR?
The 400XR uses a precision-ground ball screw, square-rail linear bearings, and optional linear encoder feedback to deliver accurate, repeatable motion. Its rigid aluminum body enhances stability, and it can be configured to achieve high precision for demanding automation or positioning tasks.
+ Can the 400XR be easily integrated into a multi-axis system?
Yes. The 400XR is designed for straightforward multi-axis integration, including XY configurations. Alignment features, dowel holes, available motor mounts, and modular accessories all make it simple to build complex systems while maintaining precision across multiple axes.

+ What environmental protections and maintenance features does the 400XR offer?
The 400XR includes IP30 protective strip seals to guard against dust and debris and offers an optional single-point lubrication system for easier maintenance. Its construction and sealing make it well-suited for harsh industrial environments while supporting long service life under continuous operation.


+ What options and accessories are available, and how do they affect performance?
The 400XR supports a variety of configurable options, including linear encoders, servo motor mounts, limit/home sensors, cleanroom preparation, and multi-axis brackets. These options allow users to enhance accuracy, increase compatibility, or meet specialized environmental requirements, tailoring the system’s performance and cost to the needs of the application.





Downloads

Download Parker 400XR Series Screw Driven Positioners and Actuators Catalog

Download Parker 401/402XR Series Product Manual

Download Parker 404/406XR Series Product Manual

Download Parker 412XR Series Product Manual (DISCONTINUED)
