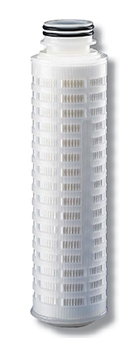

Economical Hydrophilic PES Membrane Cartridges for Aqueous Applications
Clariflow WE
Clariflow?-WE cartridges provide an economical way to filter fluids used in microelectronics such as DI water and aqueous-based chemicals. Constructed of the same high-quality materials as Clariflow?-E or E-SELECT, these cartridges are suited to less demanding applications with respect to fow and lifetime.
The combination of hydrophilic PES membrane and a high-purity, all-polypropylene support structure results in a very low level of ionic and organic extractables, broad chemical compatibility, and resistance to particle shedding.
Every cartridge is fabricated in a clean room environment, pre-flushed with 18 megohm-cm ultrapure DI water, and 100% integrity tested in an ISO-certified facility.
Parker Clariflow?-WE Cartridge Benefits:
- Economical filtration
- High-retention hydrophilic membrane
- Broad chemical compatibility for multiple applications
- 100% integrity tested
Parker Clariflow?-WE Cartridge Applications:
- BOE
- Dilute HF
- POU DI rinse
- Bulk DI water systems
- Copper plating
- Ni plating
- Hard disk wash processes
- Other dilute acids and bases
Parker Clariflow?-WE Cartridge Specifications:
Material of Construction
Membrane: Polyethersulfone
Support layers: Polypropylene
Structure: Polypropylene
All components are thermally bonded to ensure integrity and minimize extractables.
Effective Filtration Area
5.4ft2(0.50m2) per 10 (250mm) cartridge
Maximum Differential
Pressure/Temperature
Forward:
80psid (5.5bar) @ 75°F (24°C)
40psid (2.8bar) @ 180°F (82°C)
Reverse:
50psid (3.4bar) @ 75°F (24°C)
Bulk Packaging
Bulk packaged in case quantities to reduce material disposal
10 28 per carton
20 12 per carton
30 12 per carton
40 9 per carton
Download Parker Clariflow-WE Cartridge Datasheet
Talk to one of our filtration experts today at (855) 737-4717 or fill out our online form to learn more.
