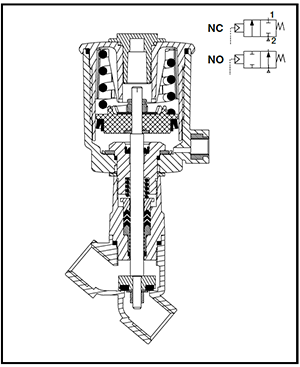

The 8290 Series consists of 2-way direct acting valves available in normally closed or normally open constructions. Built for demanding applications, these valves come in a straight-through body design made of bronze or stainless steel. There are many optional features including visual/electrical position indicator or a stroke limiter.

The 8290 Series is suitable for the following applications:

• General Service (air, inert gas, water, oil, light slurries)
• Steam and Hot Water
• Auxiliary fluids within the food and beverage process (suffix FB)

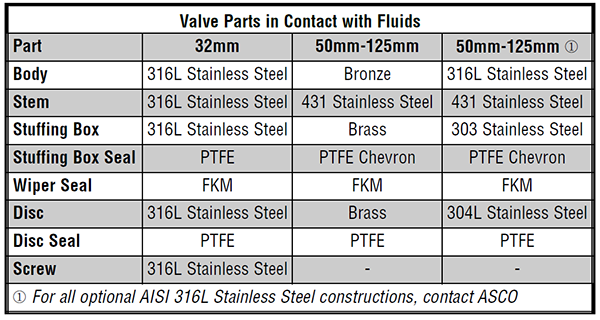

ASCO Angle Body Multi-Purpose Valves Series 8290 Construction

ASCO Angle Body Multi-Purpose Valves Series 8290 Specifications

Ambient Temperature Range: 15F to 140F
(32F to 122F for proportional valves and water service)
Pilot Fluid Temperature Range: 15F to 140F
(32F to 122F for proportional valves and water service)
Maximum Viscosity: 2,700 SSU
For higher viscosity applications, please consult ASCO.

ASCO Angle Body Multi-Purpose Valves Series 8290 Alternate Valve Constructions

• Oxygen service, add suffix N
• Medium vacuum service up to 7 x 10-3 Torr, add suffix VM
• Visual Position Indicator for normally closed valve with 32mm or 50mm operator, add suffix VI (note: position indicator standard on 63mm through 125mm operators).
• FDA CFR21 Compliant, add suffix FB. See specifications table.
• NET-INOX treatment (stainless steel valve body pickled in nitric/hydrofluoric acid bath), add suffix NI
